Levelling Shims

Stacker Packers, our engineered levelling shim with a high compressive strength

£240.00 per box (excl VAT)
In stockReady to ship

Need guidance and a worked example? View the full calculator guide

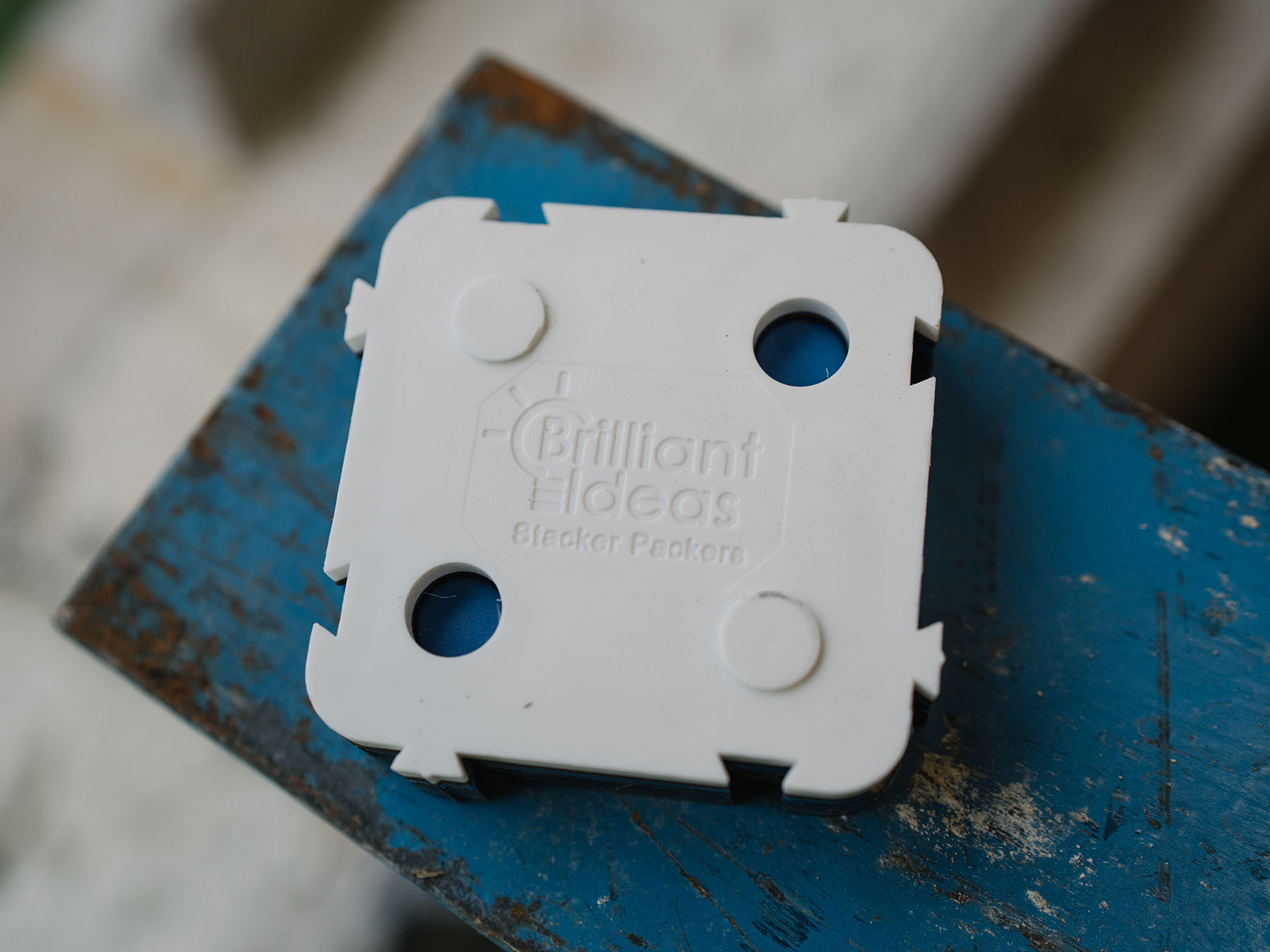

Designed and manufactured in the UK, Stacker Packers are an engineered levelling shim with a high compressive strength. Made from certified material with UV stabilisers they are independently load tested up to 14.5 tonnes.

The Stackers unique interlocking profiles ensures safe and stable structure during installation. Our shims can be stacked to create the desired packing height to provide support on steel frame buildings, precast concrete components, modular pods and buildings.

They’ve been used on Barcelona Cathedral, Tottenham Hotspur Stadium, Anfield Main Stand, Wimbledon Court One and Emirates Stadium.

Safe Use Notice

Levelling Shims must only be used within their stated design parameters and should not be used as a substitute for professional engineering advice where load-bearing, lifting, temporary works or structural considerations apply.

Disclaimer

The information, specifications, dimensions, load capacities and performance data contained in this document are provided in good faith and are believed to be accurate at the date of publication. Brilliant Ideas Ltd reserves the right to amend product specifications, designs and materials without notice.

The customer is responsible for ensuring that the product is suitable for its intended application and that it is installed, used and maintained in accordance with all applicable regulations, industry standards and site-specific requirements.

Whilst every effort has been made to ensure the accuracy of the information contained herein, Brilliant Ideas Ltd makes no representation or warranty, express or implied, as to the completeness, accuracy or suitability of the information for any particular purpose. To the fullest extent permitted by law, Brilliant Ideas Ltd shall not be liable for any loss, damage, injury or consequential loss arising from reliance upon this document or the use, misuse or application of the product.

All sales are subject to our Conditions of Sale.

Features & Benefits

Modular

Available in 2mm, 3mm, 5mm and 10mm

Unique

Perimeter profile allows adjustment of the shim stack away from the trapping zone. With other systems this isn’t possible.

Safe

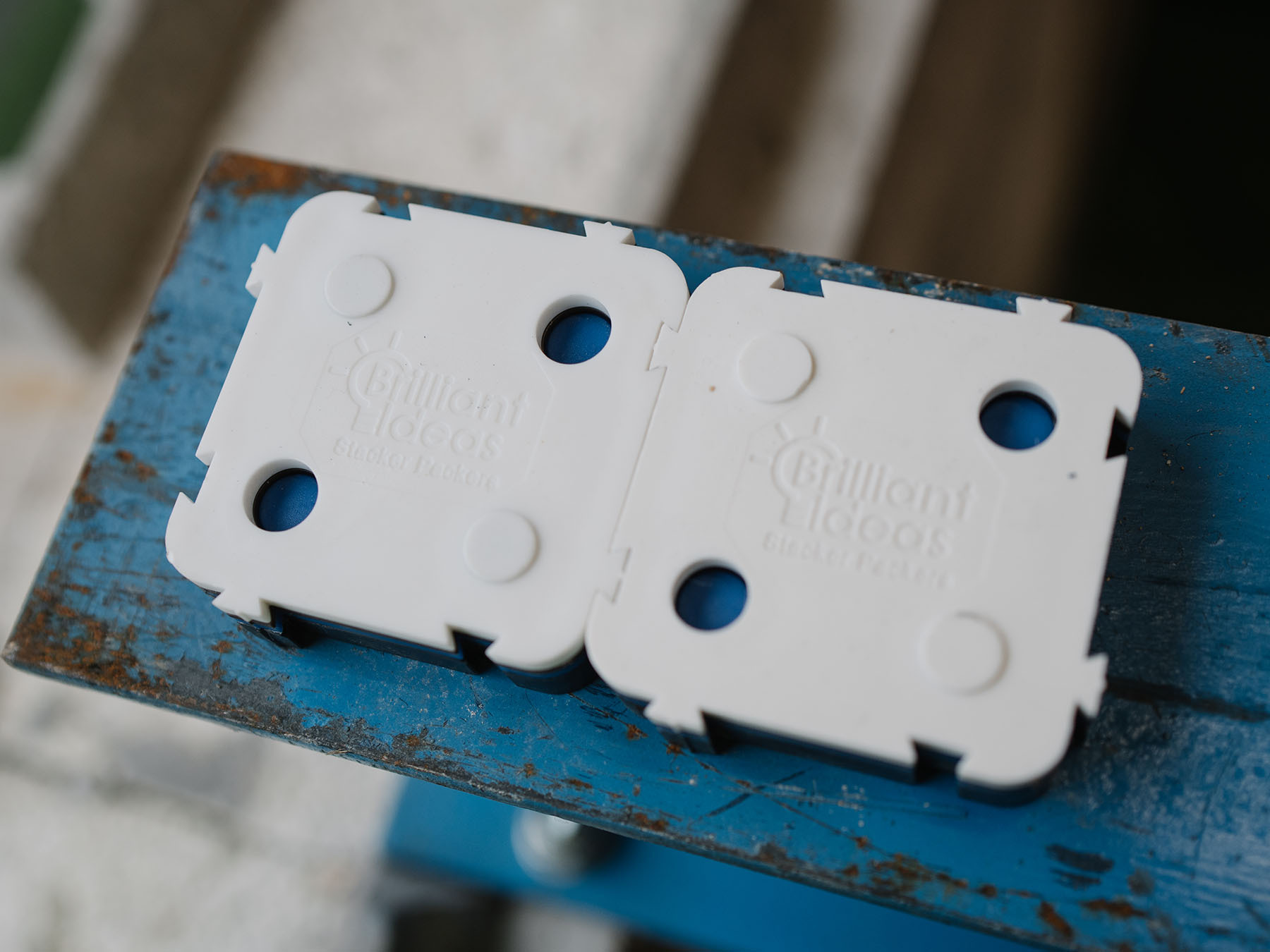

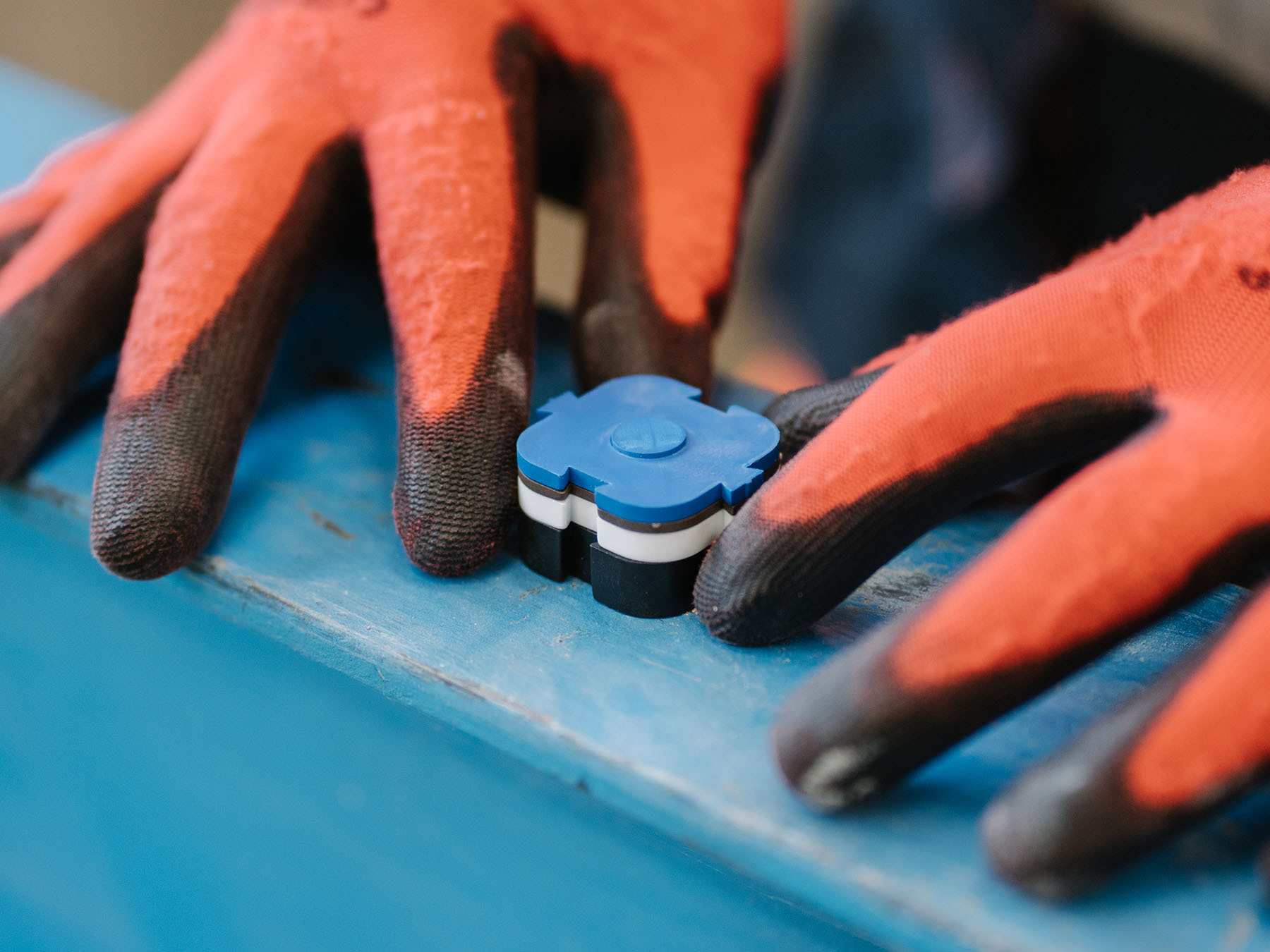

Inbuilt dowels allow the shims to interlock horizontally and vertically, forming a safe and stable shim structure, which doesn’t slip against each other under load

Stability

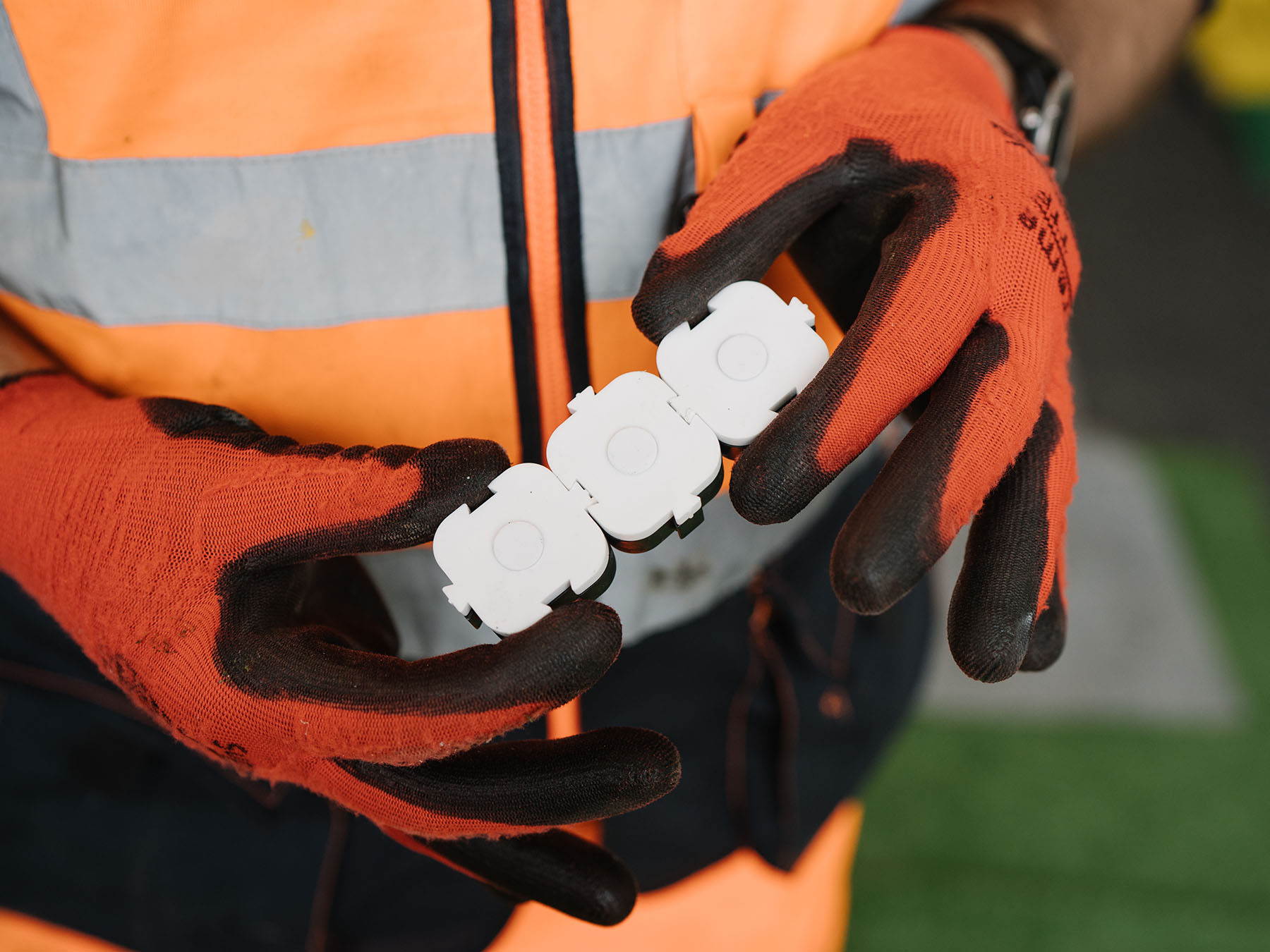

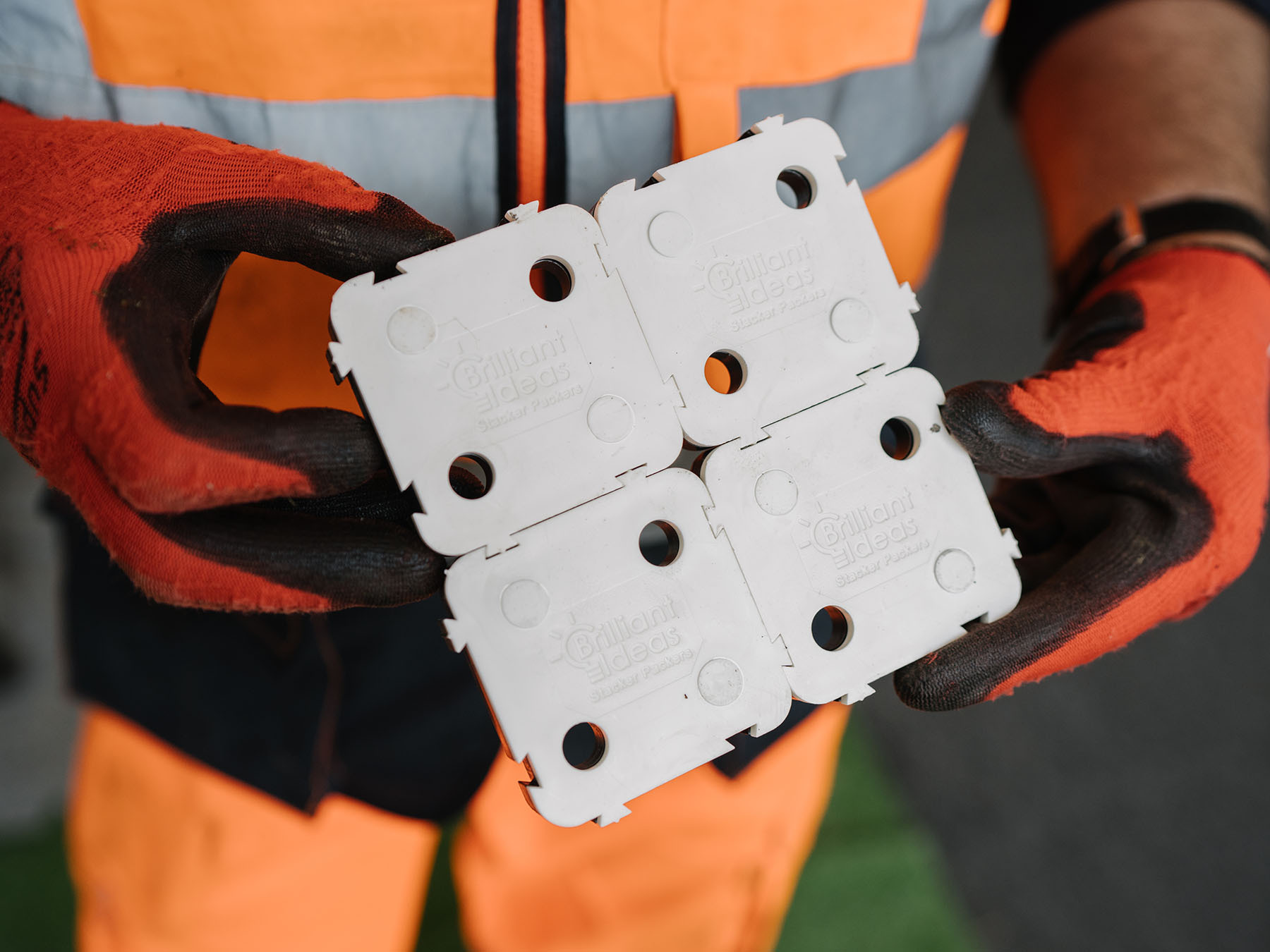

With sideways connection, the shims can be increased in length and width to give even greater stability

Design

Projecting inbuilt dowels are designed to depress under load, leaving a flat surface with no high points

Strong

High compressive strength, impact resistant and shatterproof

Light

Box of Stackers weighs 12kg. Equivalent volume of steel shims weighs circa 180kg and difficult to move around site. Steel shims don’t interlock.

Steve Burley

“

We’ve already used thousands of them on a Premier League football club development project, and we intend to use them again on our forthcoming projects. Stacker Packers is a great product.

Stacker Packers (Levelling Shims) Videos

Stacker Packers: Overview and demonstration showcasing stadiums

How Stacker Packers work in practice

Stacker Packers vs Steel Shims: What's the difference?

Why Stacker Packers were developed?

In construction, there’s often a need to build up height shortfalls, i.e., when levelling stairs and terraces. The packers or shims that are currently used are difficult to stack, easily slide off each other and are difficult to position because of their unstable nature, leading to trapped fingers.

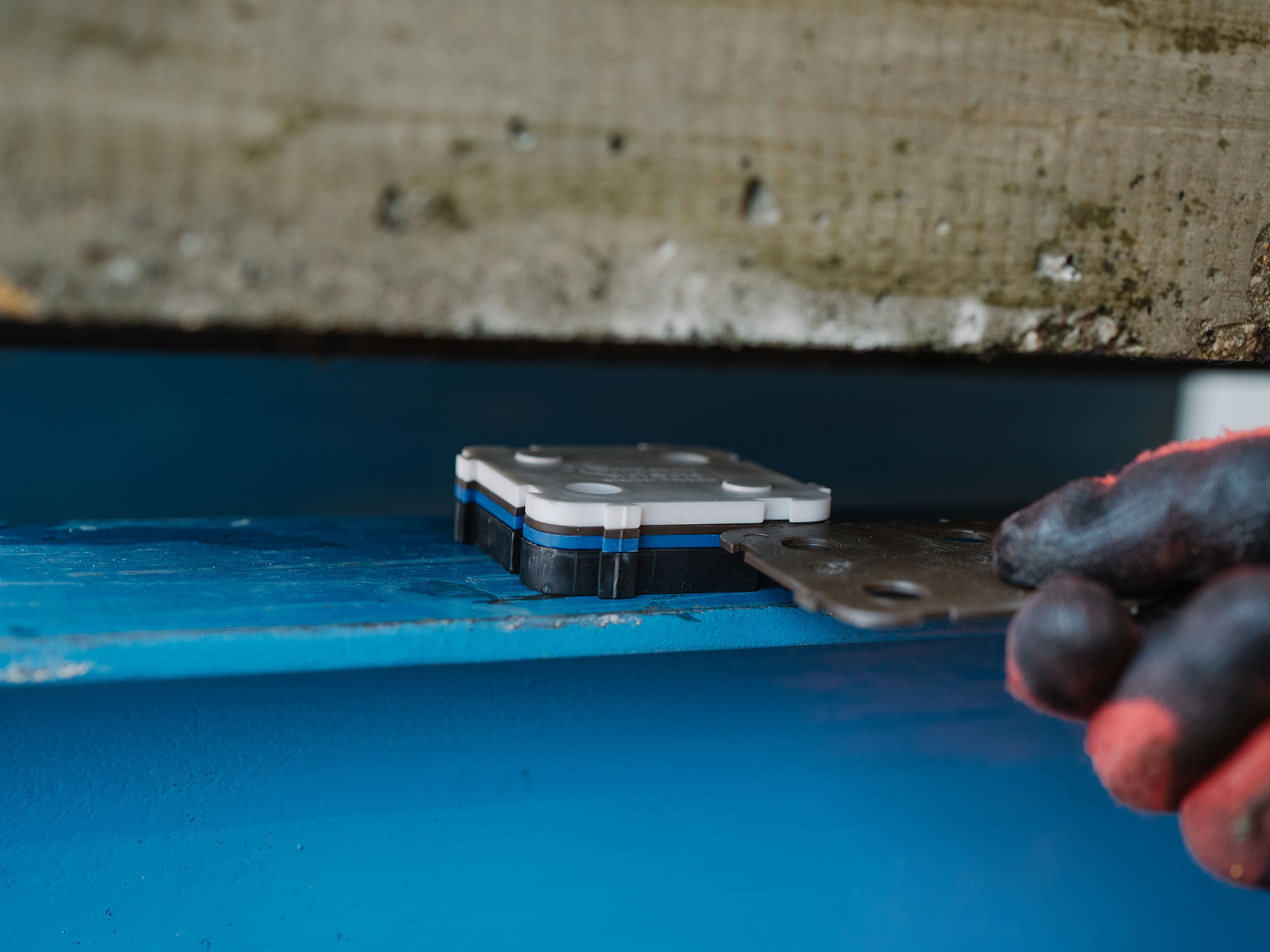

Brilliant Ideas Stacker Packers solves this problem. Our Packers have been moulded with higher dowels which fit into matching recesses, keeping the stack together. Once pressure is applied to the topmost/exposed dowels, they’re designed to collapse into the gap below giving a full and level surface area, with no high points. When setting your final position, connect the edge keys which lock into one another and then, sliding the stack into position, twist the packer to disconnect.

Independently Tested

HCC County Highways Laboratory carried out simple compression tests and TWI Ltd carried out compression tests whereby the stress/strain relationship was analysed and recorded during the test. Shim stack heights ranged from 25mm to 100mm.

Under a 14.65T load test, the 50mm stack height from HCC and TWI recorded post-test vertical deformation at -0.38% and -0.36% respectively. We recommend for shim stacks up to 50mm high the Stackers compressive strength value should be taken as: 30N/mm² (under factored loads).

Peter Woolley

“

We are using Stacker Packers as we have total confidence in the performance of this product
