Pole Driller

Safe, fast and cost-effective drilling

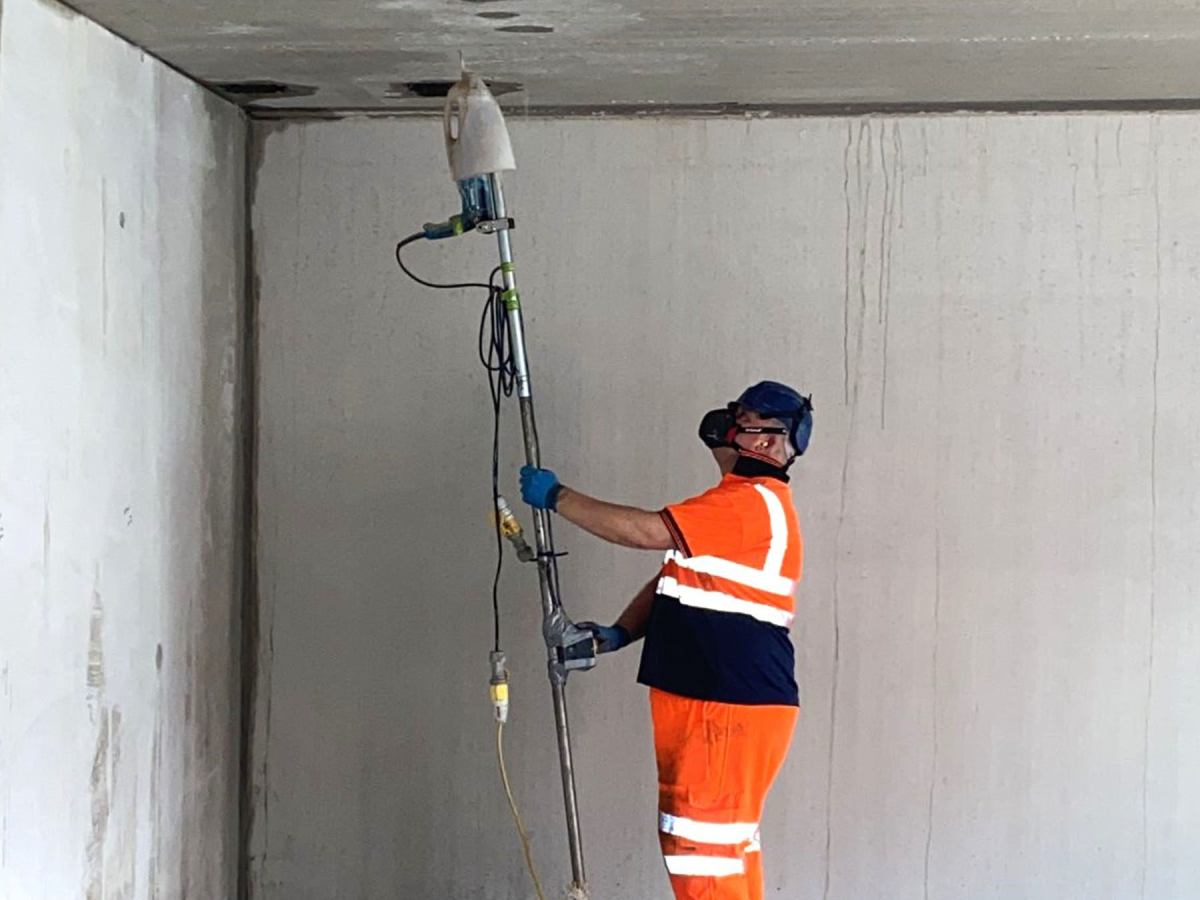

Our lightweight, telescopic pole drilling system can mark and drill drainage points working from floor level, up to 5.0m – eliminating working at height. This safe, fast and cost-effective drilling service is carried out by our sister company, Beresford’s Flooring. Interested? Please get in touch.

Product downloads

Download Datasheet

Features & Benefits

Lightweight

Easily transportable and light enough to be carried around site

Fast

Extremely rapid solution

Safe

Eliminates the risk of working at height and the need for fall protection or PASMA qualifications. Reduces the operative’s exposure to HAVS/ noise/dust/strains

Flexible

System comes with an adjustable telescopic pole which can drill into soffits up to 5.0m; works in tight spaces

Strong

Manufactured from Aluminium

Multiple Applications

System comes with various adapters enabling the soffit to be marked prior to drilling. 110V power compliant. Suitable for all types of concrete soffits

Multiple Appliances

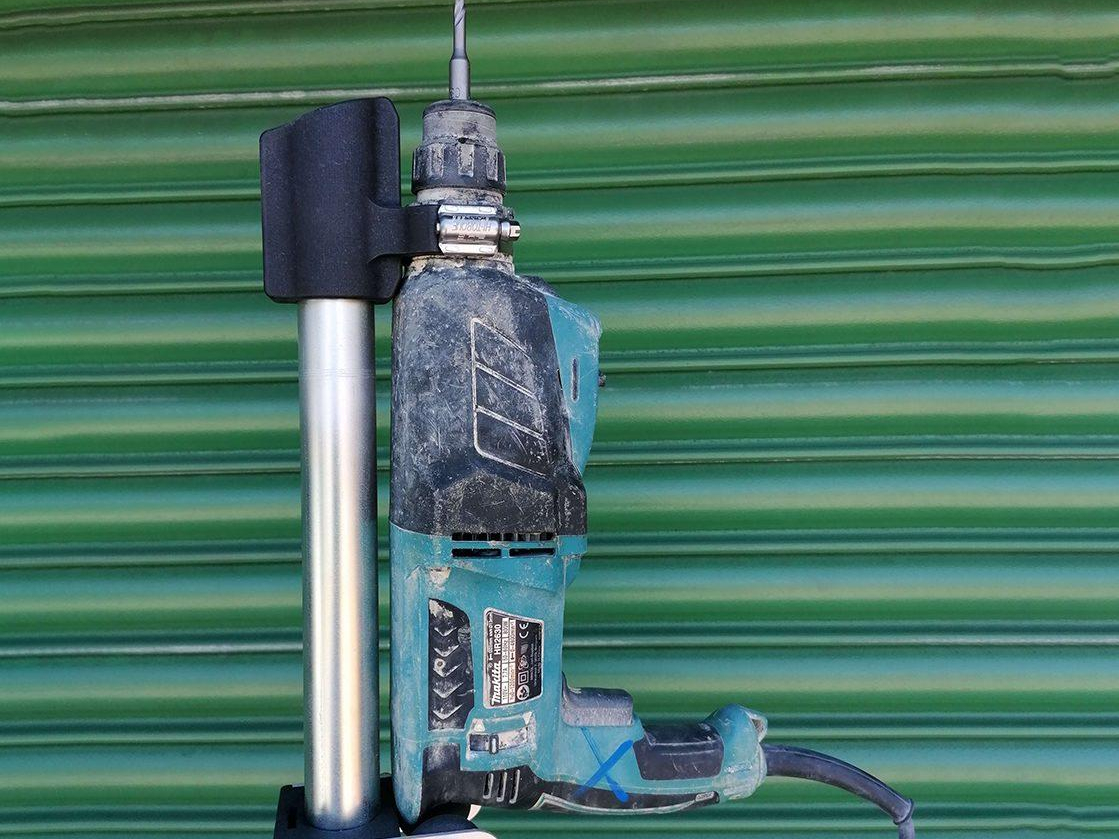

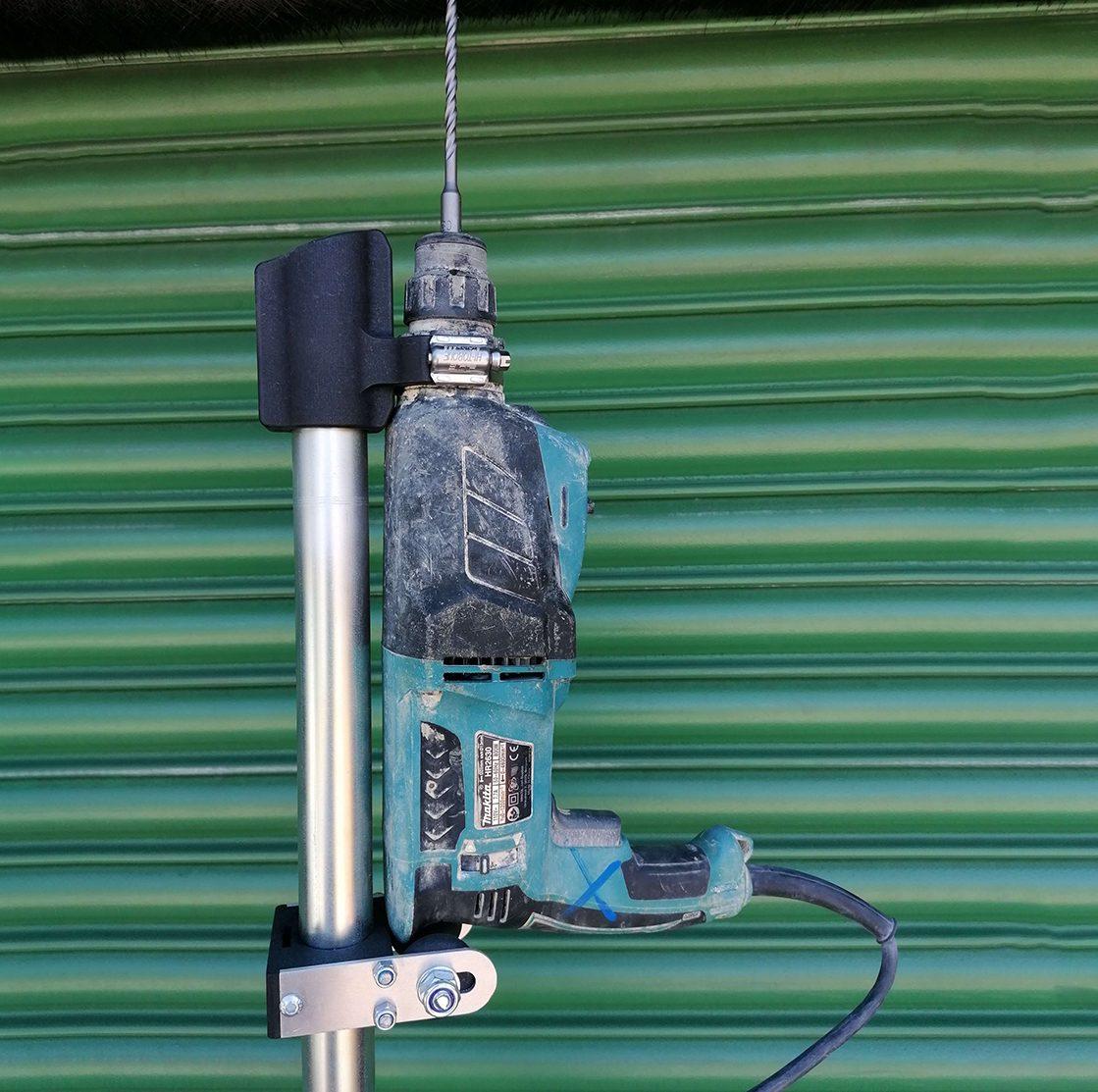

Standard slotted drive system (SDS) drill, hood to protect drill from water, drill trigger switch and handle to operate drill trigger

Dave Bloor

The Pole Drilling service improves safety on site as drainage holes in the hollowcore can be drilled working at ground level. It’s a cost-efficient option for us as the drilling operative moves easily and quickly around site with the lightweight kit, and we no longer have to hire access towers.

Safer Faster Solution

During construction rainwater can get trapped within the cores of the hollowcore precast units. Some manufacturers can drill or pre-form drainage points during production, but most can’t and carry out the drilling after installation. Often, this means operatives working at height exposing them to airborne silica dust, manual handling, hand arm vibration and noise.

With our lightweight Pole Driller this can be completed safely working from floor level. It also speeds up the drilling process, eliminating the need for tower scaffold and fall protection, making it a cost-effective option.

The Driller has been used on multiple sites, including Lancashire Cricket Club Hotel and several multi occupancy residential schemes.

Pole Driller FAQs

What is the Pole Driller used for?

The Pole Driller is used to mark and drill drainage holes in hollowcore slabs and concrete soffits, all from floor level. It was developed to replace drilling at height, particularly when releasing trapped water from precast flooring systems. By keeping operatives on the ground, it cuts fall risk, reduces dust exposure, limits vibration, and removes much of the physical strain associated with overhead drilling, while significantly increasing output across multi-storey sites.

How does the telescopic system improve site safety?

By removing ladders, towers, and overhead working, the Pole Driller eliminates one of the most common causes of serious site injury. Operatives work in a stable, upright position with clear sightlines and controlled tool handling. This reduces falls, limits exposure to vibration and silica dust, and creates a safer, working environment, especially in live, congested build phases.

What heights can the Pole Driller reach?

The telescopic system covers drilling heights from up to 6.5m, matching the vast majority of hollowcore and precast floor layouts. Its adjustable design allows fast changes between floor levels without changing equipment, keeping work moving while maintaining accuracy, control, and consistency.

Can the Pole Driller be used in confined or restricted spaces?

Yes. Lightweight, compact, and easy to manoeuvre, the system works effectively in tight rooms, corridors, and restricted access zones. Unlike access towers, it requires no dismantling or repositioning, allowing drilling to continue with minimal interruption. This makes it ideal for compartmented layouts where space is limited and progress is often slowed.

What concrete surfaces can it be used on?

The Pole Driller is suitable for precast and in-situ concrete soffits, including hollowcore slabs. It operates using standard SDS drills and 110V power, allowing seamless integration into live site environments. This flexibility supports consistent performance across varying slab profiles, densities, and service layouts.

Do operatives need specialist qualifications?

No. Because the system removes the need to work at height, PASMA and access equipment certification are not required. This simplifies planning, reduces training overheads, and allows teams to mobilise quickly without relying on specialist labour.

Who delivers the Pole Drilling service?

Our sister company, Beresford’s Flooring, delivers trained teams and specialist equipment nationwide. The service is built for speed, consistency, and safety, keeping programmes moving while lowering site risk.

What are the advantages over traditional methods?

Compared to ladder and tower based drilling, the Pole Driller delivers major gains in safety, speed, and control. It removes work at height, reduces dust and vibration exposure, eliminates repeated scaffold movements, and lowers physical strain. The result is faster progress, safer working conditions, and improved programme efficiency especially on large scale construction projects.
