Hole Covers | Brilliant Ideas Brilliant Ideas | Hole Covers

Hole Covers

Our award-winning Hole Covers are used to cover temporary holes on construction sites, to make them safe. These non-slip, slim plastic boards are fast to install and remove.

They’re used on precast concrete floors, in-situ concrete floors and metal deck floors and come in two sizes.



‘I found the hole covers to be extremely useful not only because they cut down the amount of time to install by up to 50% but they are easily identifiable due to their bright yellow colour. This is a quick fix product for what is usually a labour-intensive job with an added benefit that they can be re-used.’

Sean Smithson, Project Manager, ISG Construction Ltd



Download Datasheet

Precast Concrete Floors

In-Situ Concrete Floors

Metal Deck Floors

Features and Benefits

  • Sustainable – Manufactured from recycled Polypropylene plastic and reusable
  • Hygienic – Nonporous material which doesn’t harbour bacteria
  • Safe – Bright colour, anti-slip surface and thin, which reduces trip hazard
  • Fast – Extremely fast to install and remove
  • Small Hole Covers – Installed power tool free
  • Fully adaptable – Ideal for hole openings up to 300mm and no cutting required
  • Tested – A fully load tested solution.

Prices (RRP):

Large Hole Covers: £4.75 each (exc VAT)
Based on full boxes of 40 number and excludes delivery

Small Hole Covers: £4.25 each (exc VAT)
Based on full boxes of 40 number and excludes delivery

To find out more about Hole Covers call the Brilliant Ideas team on 01335 345111 or email enquiries@brilliantideasltd.co.uk

Small Hole Cover Set Up

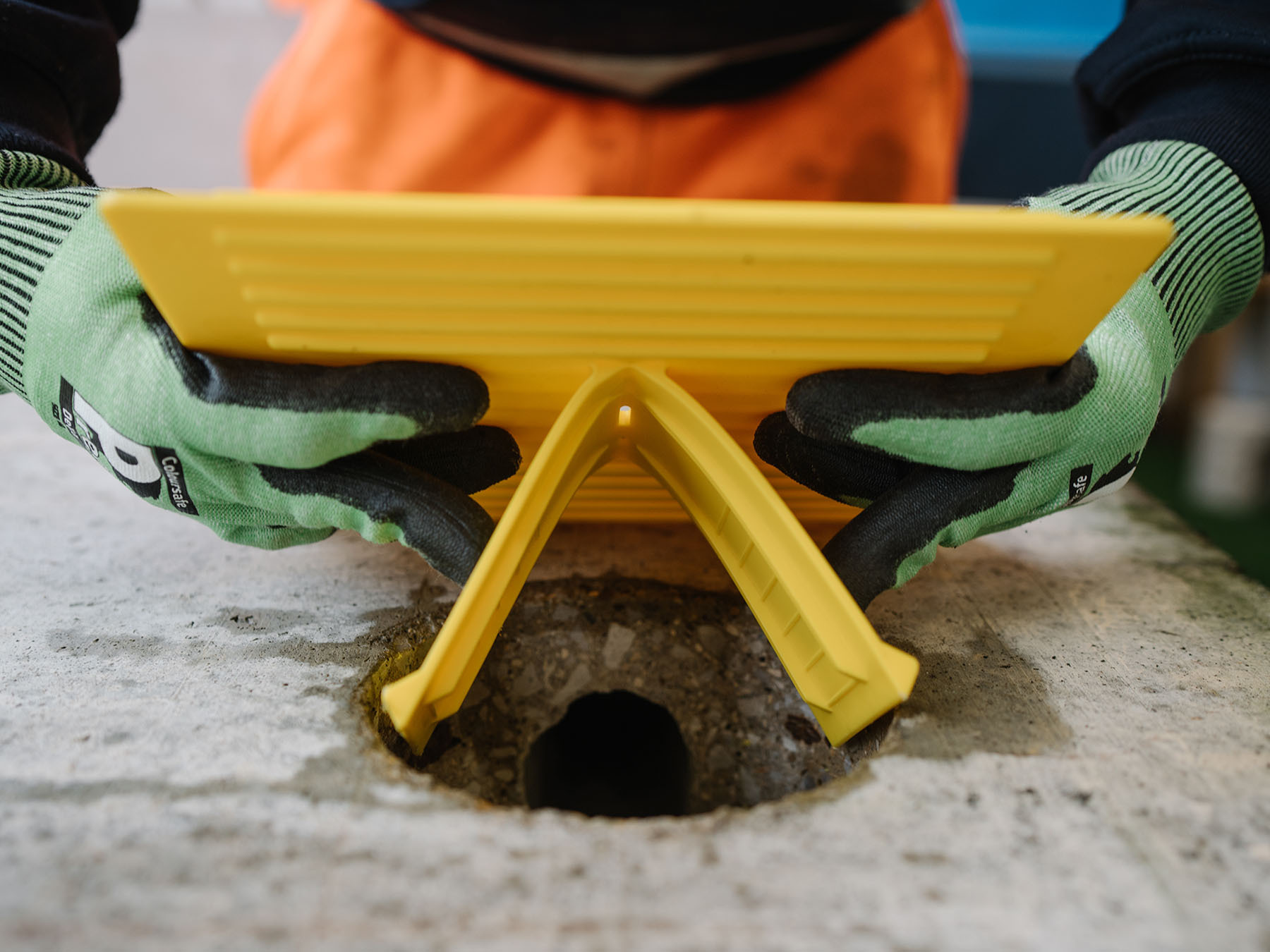

Step 1 - Squeeze legs together
Step 2 - Lower into the hole
Step 3 - Release legs
Step 4 - Push hole cover into position

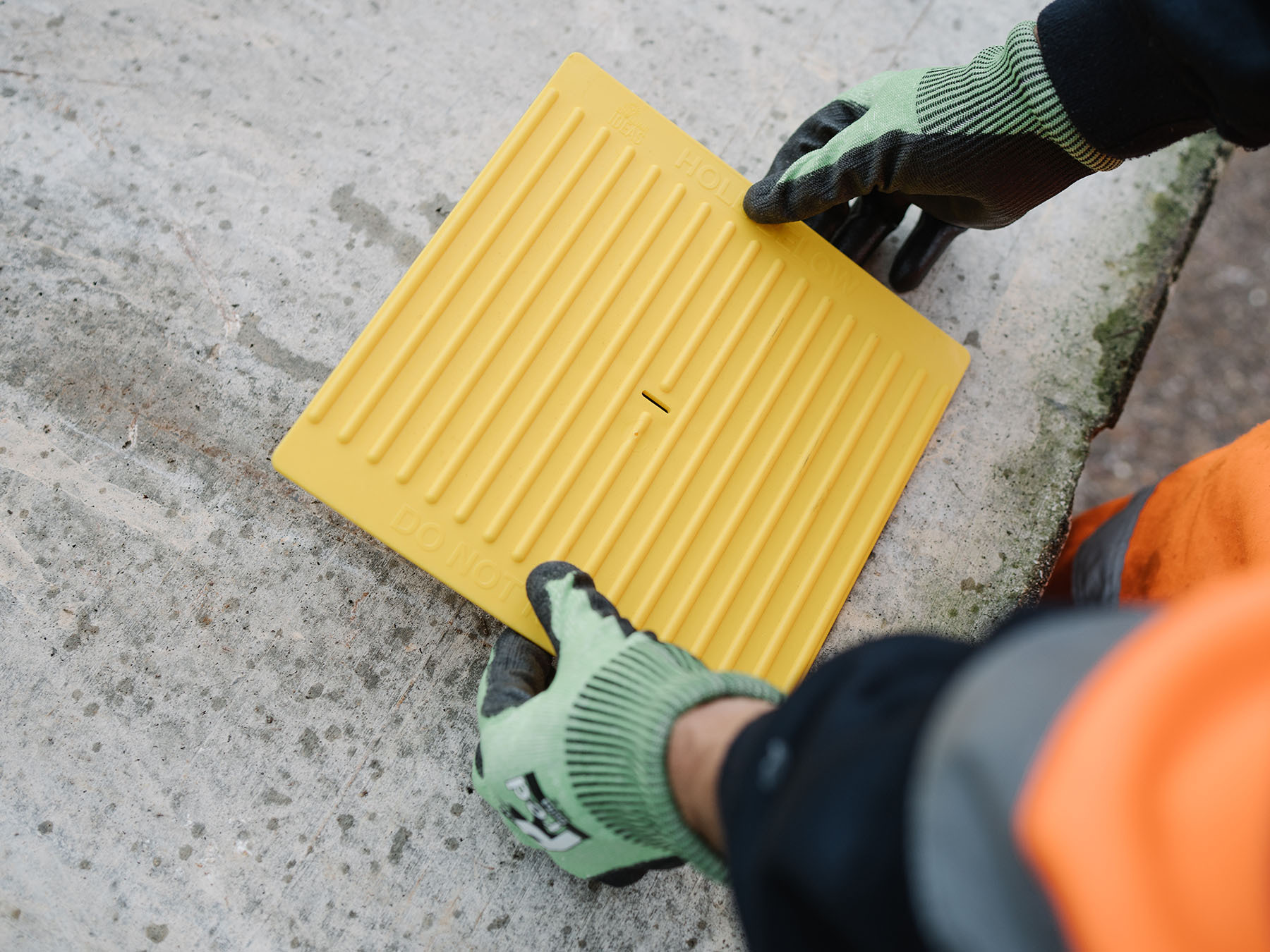

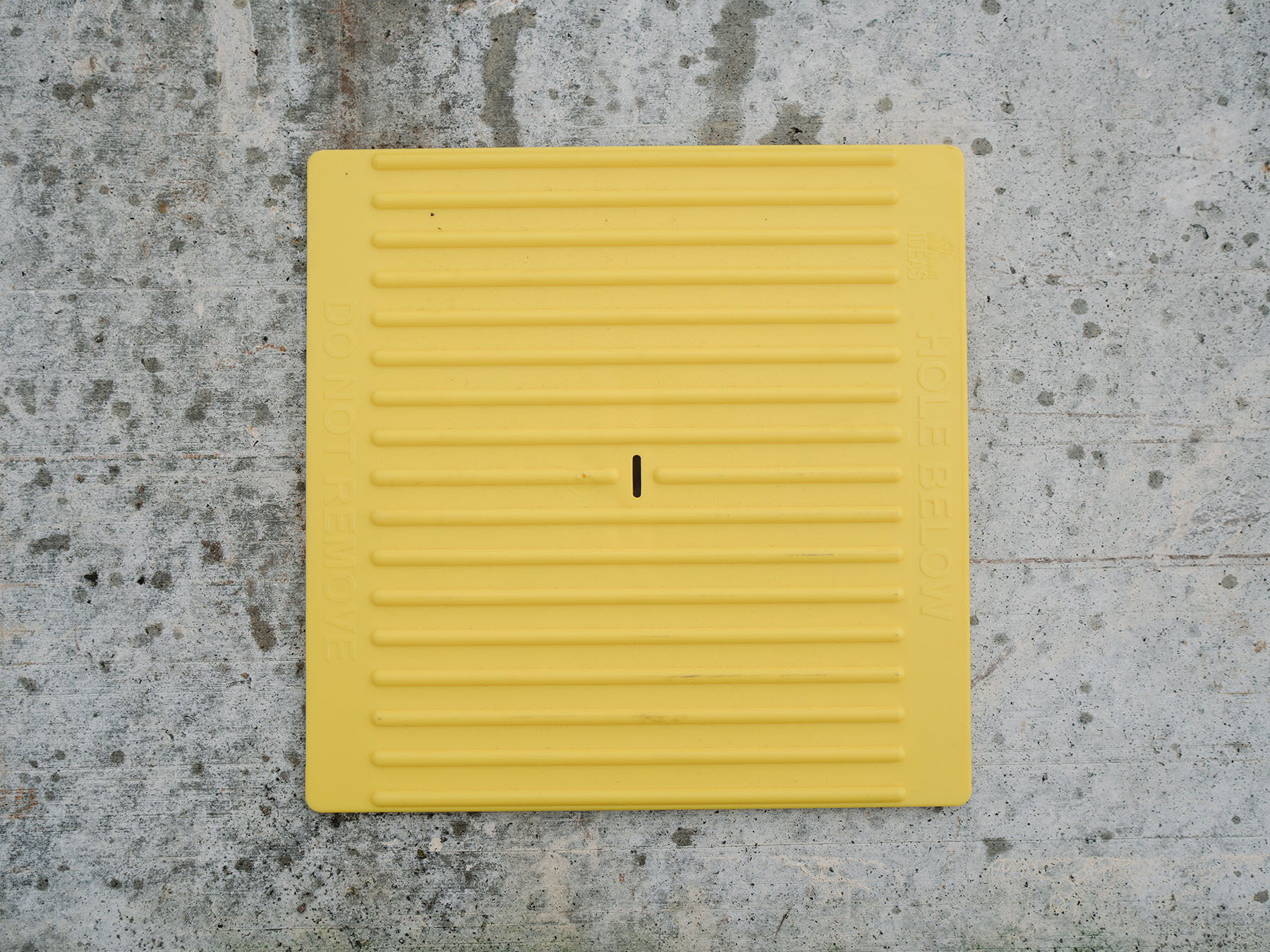

The small Hole Cover is 250mm x 250mm and is used on holes up to 200mm square. It’s secured into place by squeezing together its inbuilt legs which spring out to keep the cover in position. It’s been load tested to 150kg and is a tool free solution.

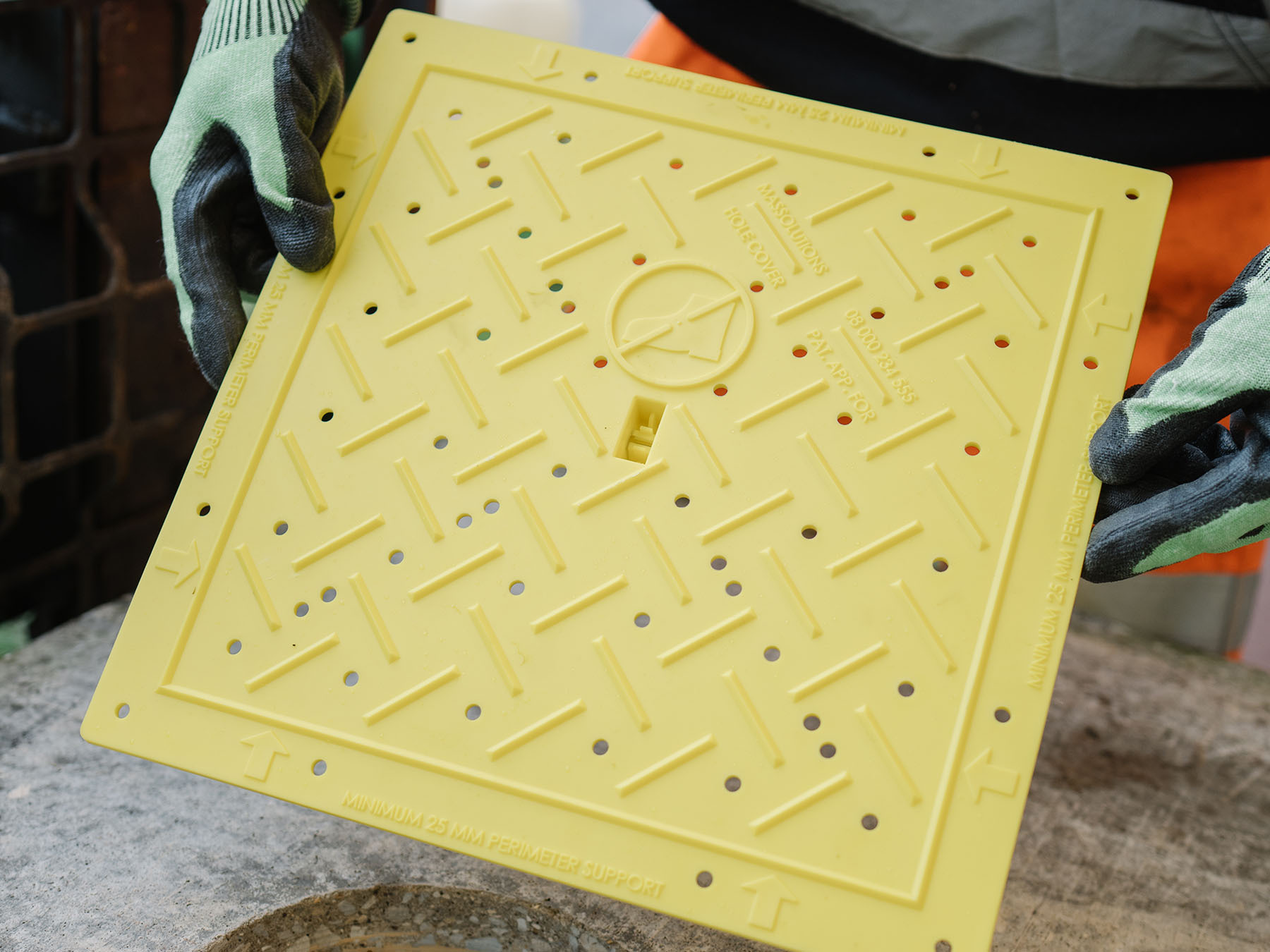

The large Hole Cover is 350mm x 350mm and covers holes up to 300mm square. This is easily screwed into place to secure its position; and load tested to 180kg.

Large Hole Covers Set Up

Step 1 - Mark pilot holes

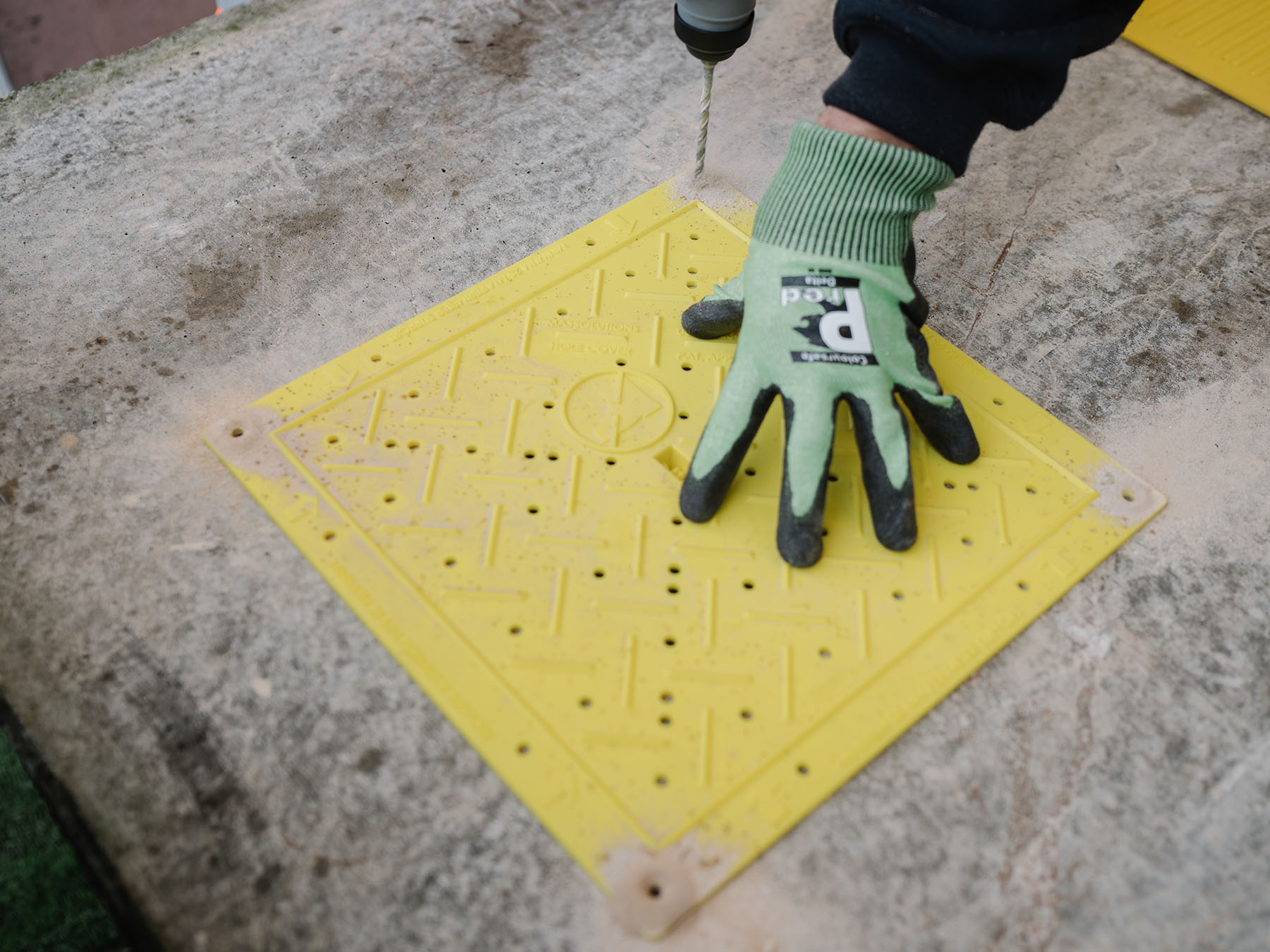

Step 2 - Drill 6mm Ø pilot holes.

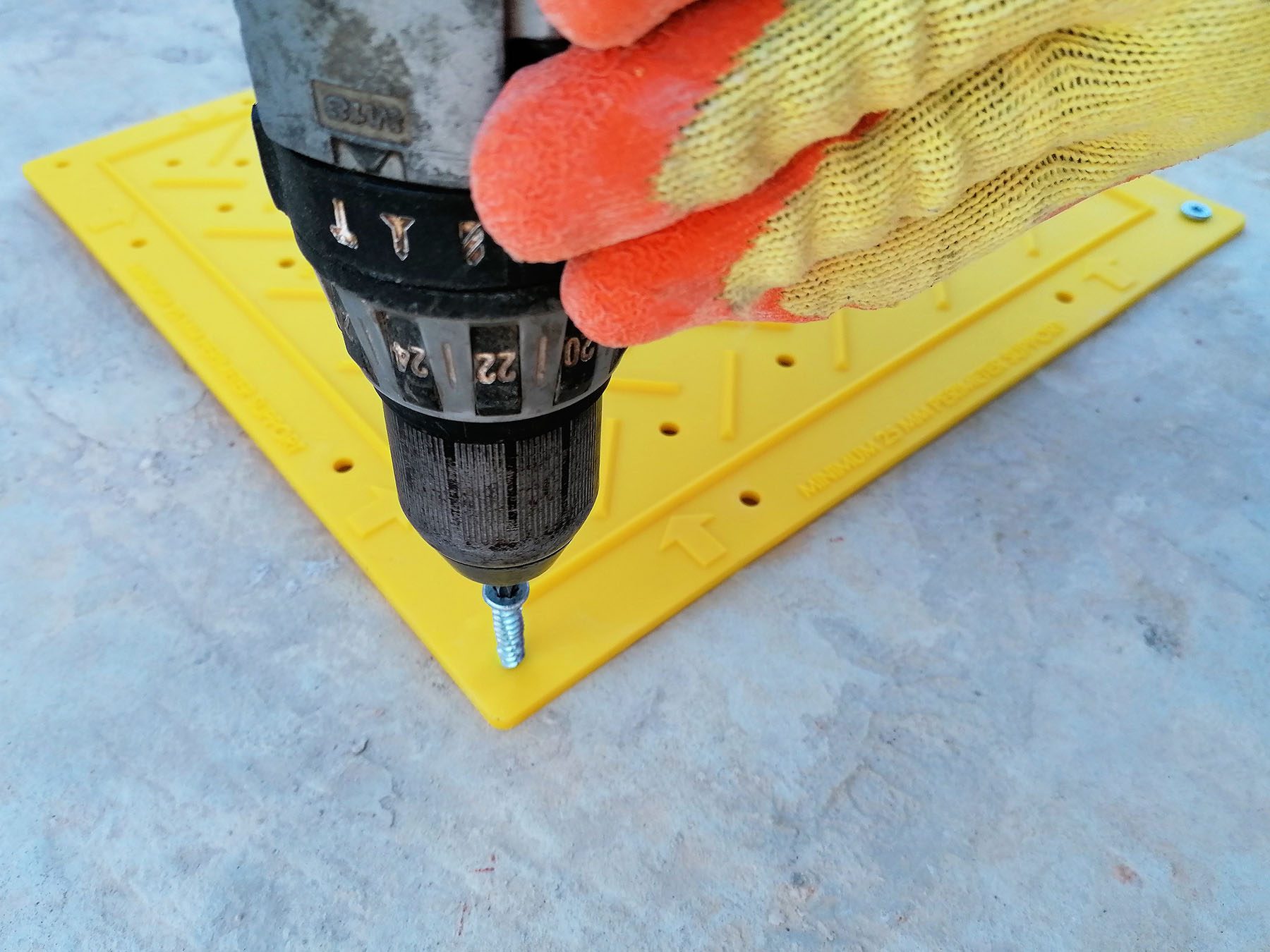

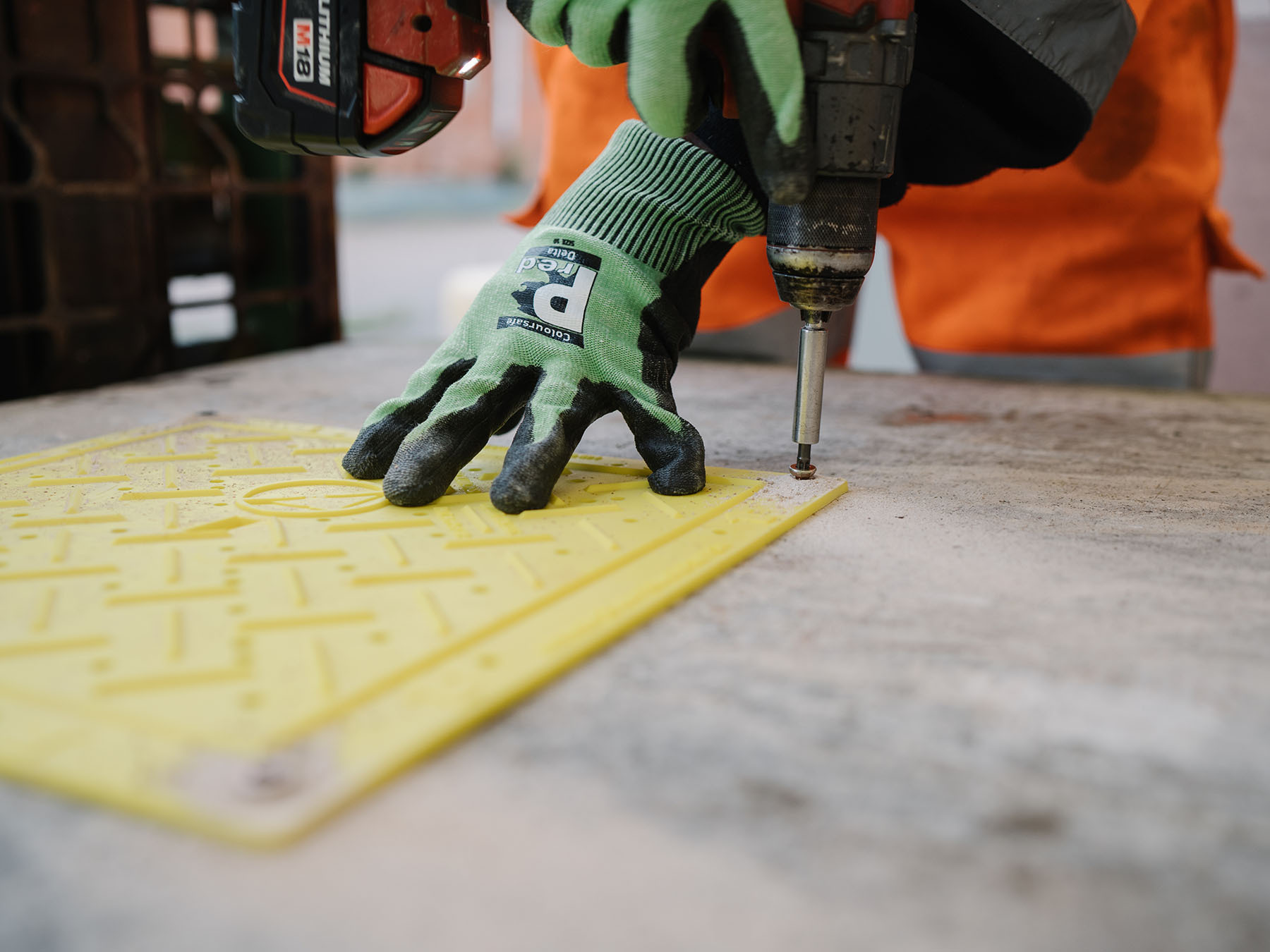

Step 3 - Screw and fix hole cover into position
Step 4 - Screw and fix hole cover into position

Download our Hole Covers datasheet or call the Brilliant Ideas team
on 01335 345111 or email enquiries@brilliantideasltd.co.uk

What is a hole cover?

Hole Covers are used on construction sites to cover temporary holes in floors and to make them safe until services have been installed. During construction, service holes pose hazards to workers on site relating to slips, trips, falls and falling debris. Hole cover provides the necessary protection to mitigate these hazards.

The award-winning patented Hole Cover system developed by Brilliant Ideas, is a quick and simple to install method of covering these holes, creating a safer working environment.

Generally, temporary holes are formed in precast concrete floors, insitu concrete floors and metal deck floors. Holes are formed in precast flooring during manufacture and arrive to site unprotected.


Who are hole covers used by?

The construction industry are the biggest users of hole covers. Temporary service holes are a common feature on construction sites, with structures at various stages of completion. These floor openings can cause slip and trip hazards if they are not covered.

Hole Covers are used widely across different sectors in construction, including main contractors, house builders, hybrid frame contractors, precast concrete manufacturers (floors/frame), installation contractors (steel/concrete frames), in-situ frame contractors, core drilling contractors, and health and safety professionals.

Clients who use the Brilliant Ideas Hole Cover system include Engie, Willmott Dixon, Kier, BAM, Unite Living, ISG, Morrison Construction, Morgan Sindall, Holemasters, Wates, Stepnell, Skanska and Galliford Try.

When must hole covers be used?

Whenever a temporary hole has been created on site. Holes in the building environment present a hazard to people working and visiting site.

51,000 construction workers sustained non-fatal injuries in 2020/2021 – 33% of these were slip, trips and falls on the same level, according to HSE figures reported under RIDDOR.

These are some of the projects where our Hole Covers have been used:


How do you keep hole covers in good condition?

Hole Covers manufactured from recycled Polypropylene plastic are easy to keep clean and in good condition. This nonporous material doesn’t harbour bacteria, which makes them hygienic. Also, thanks to this tough recycled plastic, hole covers are reusable – adding to their sustainability credentials.

Typically, access holes on construction sites are covered using timber. These can easily become dislodged, develop algae creating a slippery surface and become a trip hazard because of their low visibility and timber thickness.

Brilliant Ideas Hole Covers are made from recycled Polypropylene plastic; and because they’re non-slip, they’re safe. Bright yellow in colour, they are highly visible and slim line, reducing trip hazards.

Our hole covers were shortlisted the 2021 British Construction Industry awards and Building Innovation awards.

How long do hole covers last for?

The Brilliant Ideas Hole Cover system is reusable and will stand the test of time. They’re strong and have been independently load tested.

The load test analysis on our large Hole Cover – shows 180kg (28 1/2 stone) being applied through a single heel print (90 x 80mm) over a 300mm hole, with screw fixings to each corner.

The load test analysis on our small Hole Cover – shows 150kg (23 1/2 stone) being applied through a single heel print (90 x 80mm) over a 200mm hole.

The fact that our hole covers are manufactured in the UK and reusable, is an attractive proposition for organisations who are committed to cutting their carbon footprint and building a greener environment. Brilliant Ideas Hole Covers reduce the impact of a throwaway culture.

They also increase efficiency on construction sites because they are easily installed and can be removed quickly.

Orders for our Hole Covers has increased more than 200% in the last 12-months, as awareness of their benefits grow within the industry.


What are the different types of hole covers?

The main types of hole covers used on construction sites are made from plastic and timber. Sometimes metal plates are used, and even makeshift covers, like pallets.

Timber is problematic as it can develop algae making it a slip hazard. The thickness of timber boards can pose a trip hazard too. They can also be time consuming and expensive to install.

There are many benefits to Brilliant Ideas Hole Cover system:

What size hole cover do I need?

Brilliant Ideas Hole Covers come in two sizes. The large Hole Cover is 350mm x 350mm, covers holes up to 300mm in diameter and is screwed into place to secure in position. The small Hole Cover is 250mm x 250mm, covers holes up to 200mm in diameter and is secured into place by squeezing its inbuilt legs together, which spring out to keep the cover in position. This is a tool free solution.

As a guide, OSHA (Occupational Safety and Health Administration) states that when it comes to covering holes in floors ‘employees must be protected from tripping or falling into holes by placing hole covers over them, and hole covers must be used on holes bigger than 58mm or more’.

So, if there’s a 127mm diameter hole on site for a service pipe, then it must be covered to prevent someone from tripping and injuring themselves – regardless of the fall distance below the hole.


Why Brilliant Ideas Invented the Hole Cover

Chris Massey is the Managing Director of Brilliant Ideas and our sister company Beresford’s Flooring. He’s the inventor of all Brilliant Ideas safety construction products – including this Hole Cover.

Chris started developing problem solving innovations more than 30-years ago when he couldn’t find the products on the market to improve safety for his employees. When one of Beresford’s operatives was installing some precast concrete and stepped backwards into an unprotected opening within the floor, resulting in a badly twisted ankle and cut shin – along with time off work. This was classed as RIDDOR (Reporting of Injuries, Diseases and Dangerous Occurrences Regulations 2013).

As soon as Chris sees a potential problem on site, he starts to think of ways to overcome it. Most innovations have been created in response to accidents or near misses, to increase efficiency and to get projects done within budget. They’re all now available on the open market and used widely across all construction sectors.
